The Reason
The Tortue de Joux shows how a simple calibre can be taken and changed into a watch which takes on a new life, being transformed in shape and form.
The example below is based on an UT6497 calibre, the form of the movement is altered to a tourneau shape and skeletonized. The vibrations per hour of the balance is 18000, which associates with early calibers predominantly pre- 1950's.
View fullsize

Movement bridge side
View fullsize

Dial side
Please click on the images to enlarge them
View fullsize

Ratchet wheel
View fullsize

Upper crown wheel
View fullsize

Hour wheel
View fullsize

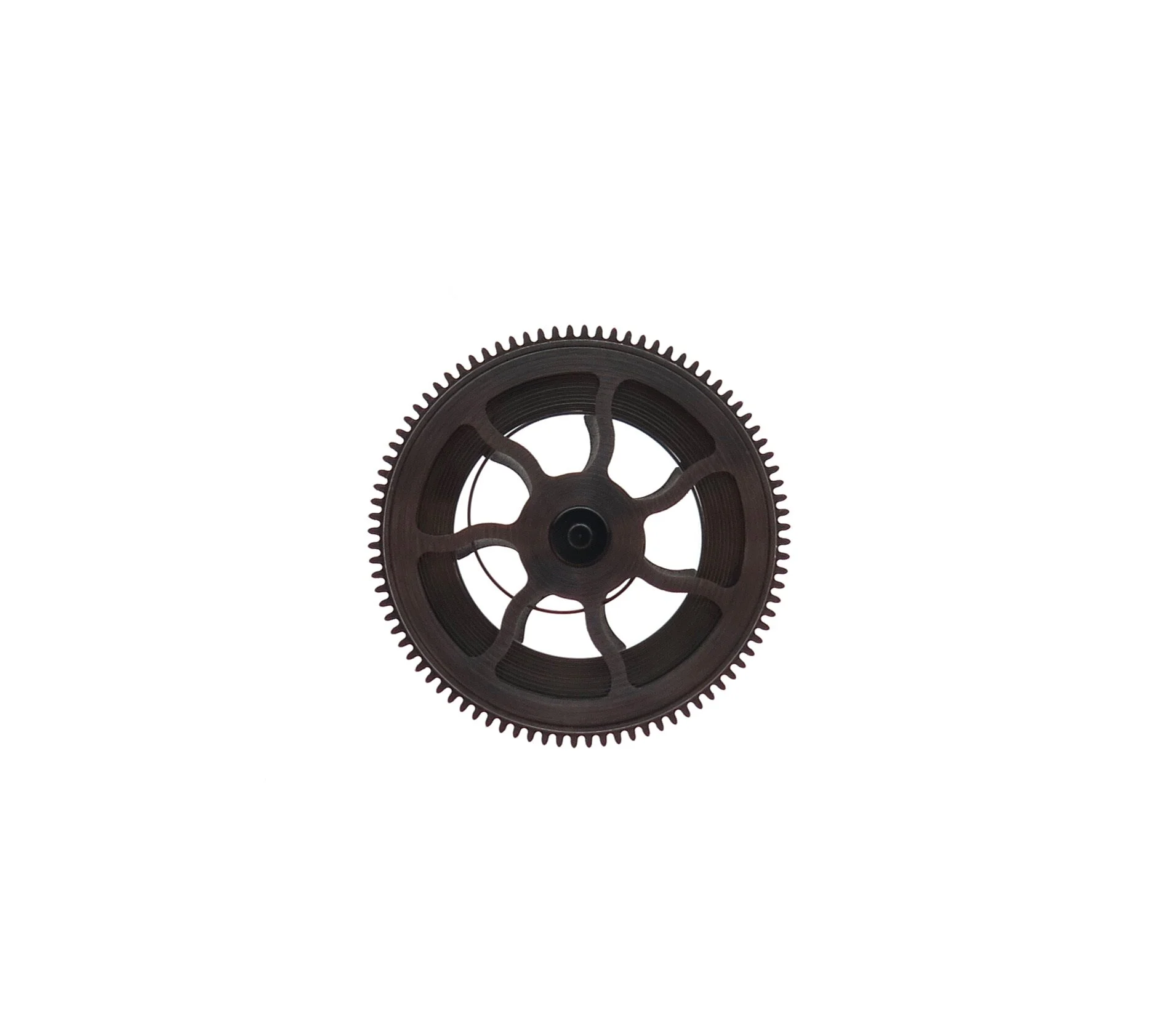

Plan view barrel
View fullsize

Inclined view barrel
View fullsize

Ratchet click
View fullsize

Setting lever spring plate
View fullsize

Setting lever and screw
View fullsize

Winding stem
View fullsize

Winding pinion & sliding clutch
View fullsize

Train wheels
View fullsize

Centre wheel
View fullsize

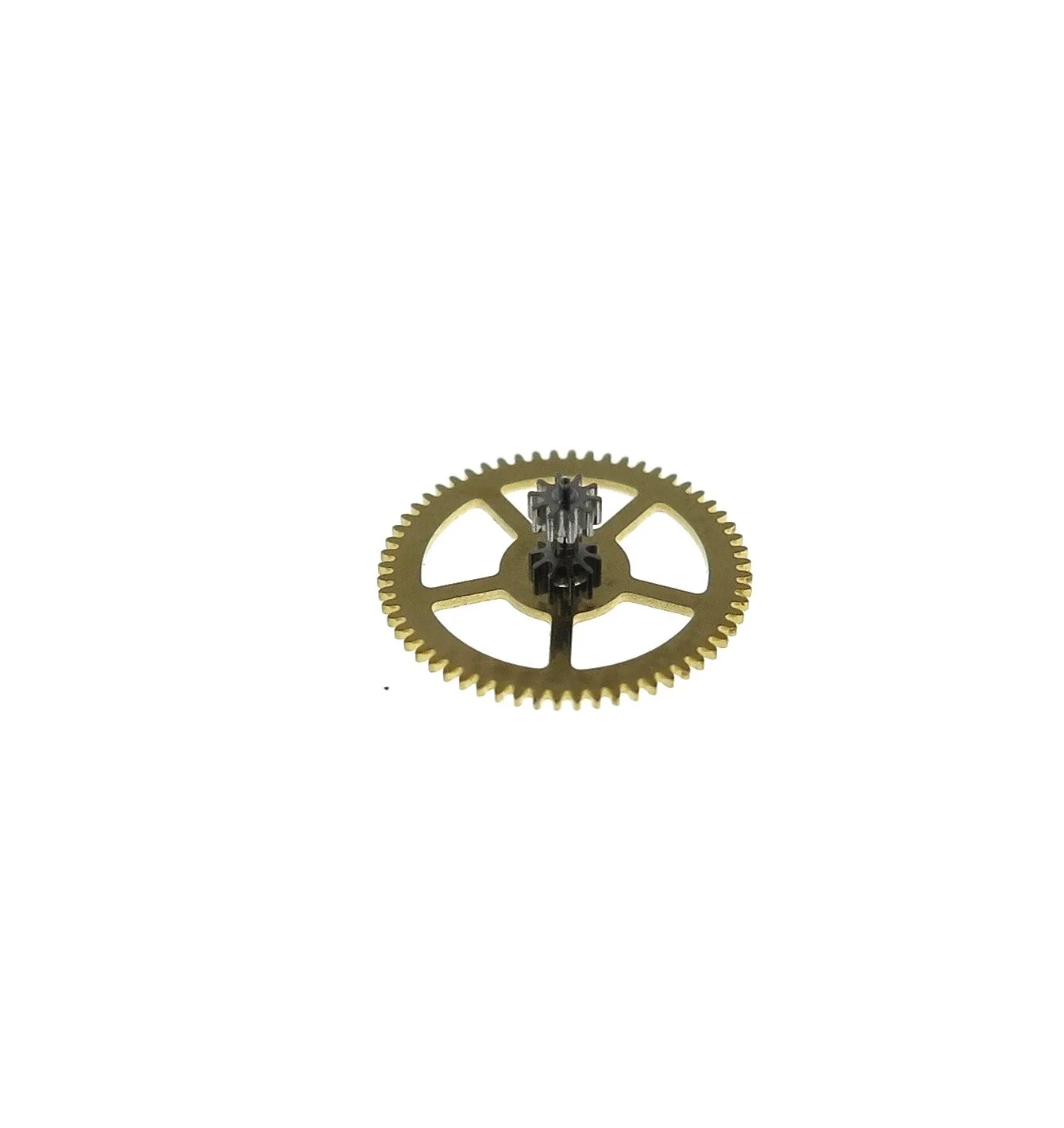

3rd wheel
View fullsize

4th wheel
View fullsize

Canon pinion
View fullsize

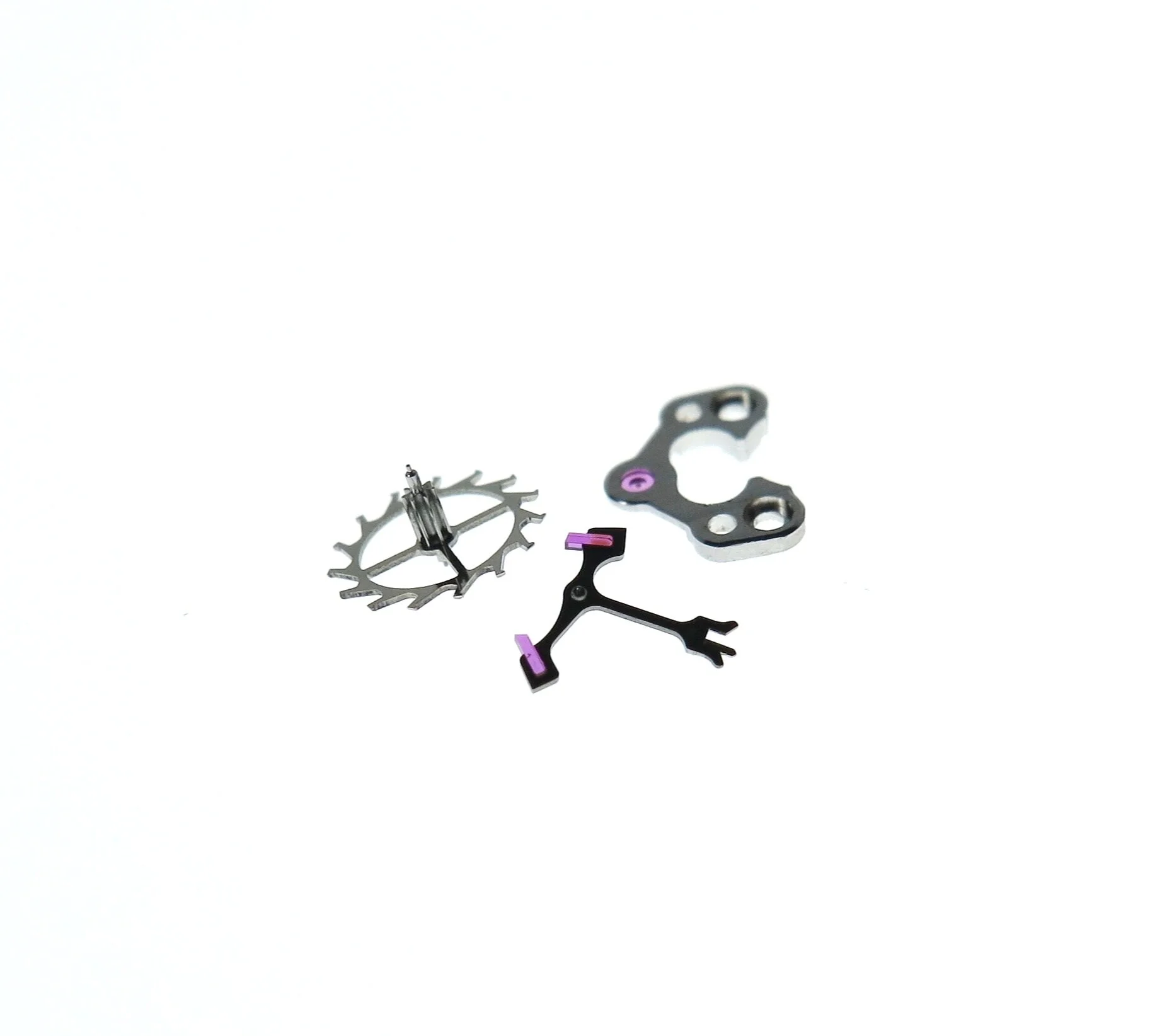

Escape wheel, anchor(pallets) and pallet bride
View fullsize

Branding printed on sapphire, underside
View fullsize

Upper side of balance bridge assembly
View fullsize

Underside of balance bridge
Inclined view of bridge side of movement, the frequency of the balance is 18000 vibrations per hour.
View fullsize

Setting mechanism
View fullsize

Beveled sapphire glass
View fullsize

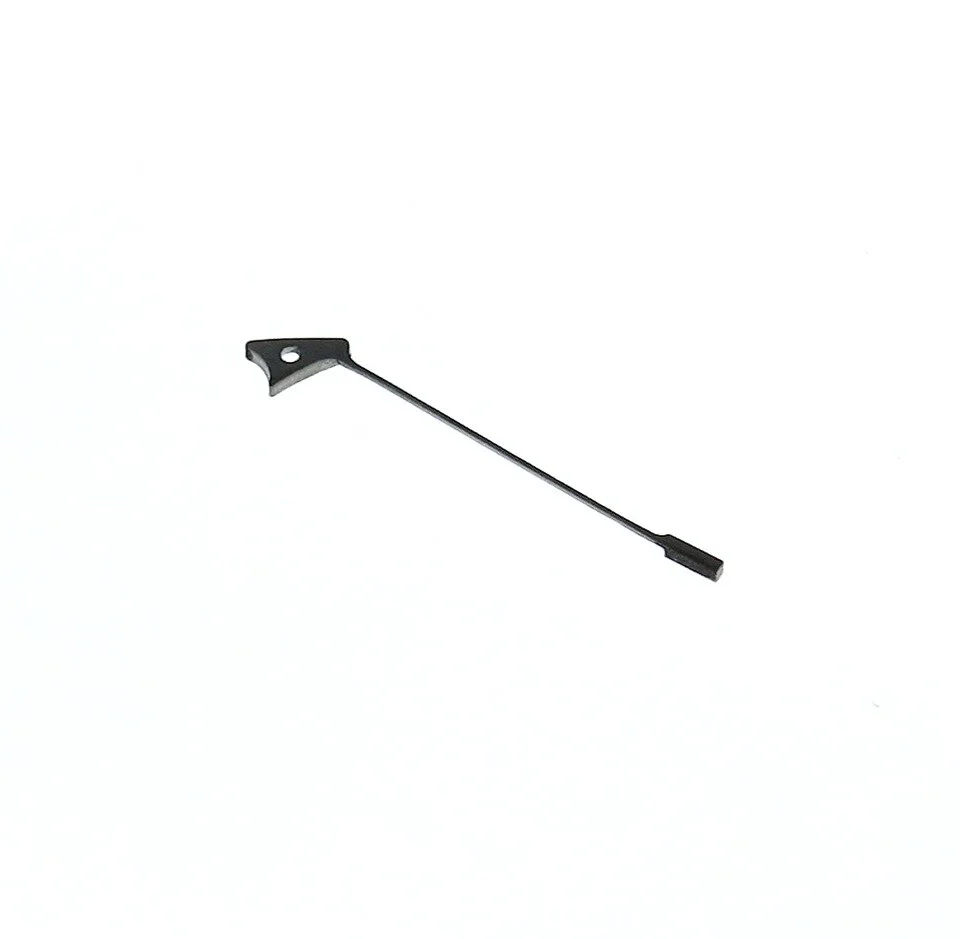

Black lacquered hands
View fullsize

17 jewels in total
All of the jewels are pushed (friction fitted) in the bridges.
Diverse views of the piece
